Solid Rollers Making 11kw Paper Slitter Rewinder

Name: Solid Rollers Making 11kw Paper Slitter Rewinder
Brand: Tiansheng
Price: 1 USD

China Solid Rollers Making 11kw Paper Slitter Rewinder wholesale

Brand Name : Tiansheng

Model Number : 1600C

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Price negotiation

Payment Terms : L/C, T/T

Supply Ability : 10+SET/SETS+per month

Delivery Time : 40-45

Packaging Details : All with stretch film machine, into the container.

Parent roll width : 1600(mm)

Parent roll diameter : 1200(mm)

Rewind diameter : 1200(mm)

The main power : 11kw

Paper on the way : Hydraulic Shaftless Support

Number of cutter : 18pcs

Contact Now

TSFQ-1600C Paper Roll Slitter Rewinder Solid Rollers Making Easy Operation

Machine introduction

1. The paper winding method is the inflatable shaft retractable type. Inflatable shaft take-up paper completely avoids the phenomenon of the conventional take-up paper roll and shaft disengagement.
2. The unique slitting structure of the bending roller completely avoids the paper overlapping phenomenon during rewinding. The curvature of the bending roller can be adjusted at any time according to the paper.
3. Pneumatic paper unloading after rewinding saves labor, and is convenient and fast.
4. Independent operation of the electric box is conducive to the operation of the entire machine. Its main executive components are Chint products; the cylinder components are Tian'ao Soupai products. These are China's old-fashioned products, which have the characteristics of durability and high practical value.

Technical parameter

Parent roll width	1600(mm)
Parent roll diameter	1200(mm)
Parent roll diameter	1200(mm)
Rewind diameter	1200(mm)
Slit width	>35(mm)
Slitting capability	80-600g
The main power	11kw
Paper on the way	Hydraulic Shaftless Support
Number of cutter	18pcs
Winding way	Gas up outside the closed
Paper down the way	Hydraulic blanking
Adjusting knife mode	Manual adjustment
Speed of adjust and control	Frequency control
Speed of Slitting	1-300(m/min)

main point

All of our machines will be tested and had trial production in our factory before leaving our factory and they are shipped out only after customers are satisfied with them. Customers can send your technicians or the Third party inspection agency to our factory to check and accept machines before delivery.

Solid Rollers Making 11kw Paper Slitter Rewinder

Product Tags:

paper slitting and rewinding machine

paper roll slitting & rewinding machine

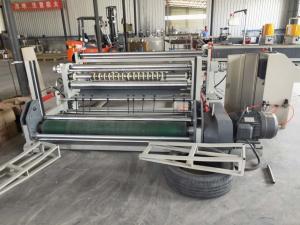

Solid Rollers Making 11kw Paper Slitter Rewinder Images
