11kw Jumbo Paper Slitting And Rewinding Machine

Name: 11kw Jumbo Paper Slitting And Rewinding Machine
Brand: Tiansheng
Price: 1 USD

China 11kw Jumbo Paper Slitting And Rewinding Machine wholesale

Brand Name : Tiansheng

Model Number : 1600C

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Price negotiation

Payment Terms : L/C, T/T

Supply Ability : 10+SET/SETS+per month

Delivery Time : 40-45

Packaging Details : All with stretch film machine, into the container.

Parent roll width : 1600(mm)

Parent roll diameter : 1200(mm)

Rewind diameter : 1200(mm)

The main power : 11kw

Slit width : >35(mm)

Speed of adjust and control : Frequency control

Contact Now

High Speed Jumbo Paper Roll Slitter Rewinder Machine Automatic Slitting Rewinding

Machine introduction

1.The paper consists of independent parts provides ample space for the operator adjustment tool, traction paper. The fixing of the bottom knife avoids the occurrence of "S" bending faults of the cutting paper.
2. Rolling rollers for polyester material, its abrasion resistance and compressive deformation and slip resistance is the best choice for paper roll winding.
3. The paper winding out for inflatable shaft type. The delivery of inflatable shaft to completely avoid the conventional paper roll and shaft off phenomenon.
4. Bending roll parting structure unique, completely avoid rewinding paper overlap. The radian of the bending roller can be adjusted at any time according to the paper.
5. The paper has the advantages of saving labor, convenient and fast operation.

Technical parameter

Parent roll width	1600(mm)	Major Executing Devices (Contactors, etc.)	CHINT
Parent roll diameter	1200(mm)	Button	Siemens
Parent roll diameter	1200(mm)	Emergency stop	Siemens
Rewind diameter	1200(mm)	knob	Siemens
Slit width	>35(mm)	Signal elements (proximity switches, etc.)	Hugong
Slitting capability	80-600g	Cylinder element	CEHNGDI/SUOPAI/TIANAO
The main power	11kw	Hydraulic system	Special-purpose
Paper on the way	Hydraulic Shaftless Support	Frequency converter	ENERGY
Number of cutter	18pcs	Configuration device
Winding way	Gas up outside the closed	Charging	Hydraulic lift system Electric clamping
Paper down the way	Hydraulic blanking	Blanking	Hydraulic blanking
Adjusting knife mode	Manual adjustment	Rewinding of Single Air Rising Shaft
Speed of adjust and control	Frequency control	Double-knife slitting, thickened blade
Speed of Slitting	1-300(m/min)	Application tools	Pneumatic runner,an Allen wrench,air tap 2
Power input	380V 220V
Operator	1

main point

All of our machines will be tested and had trial production in our factory before leaving our factory and they are shipped out only after customers are satisfied with them. Customers can send your technicians or the Third party inspection agency to our factory to check and accept machines before delivery.

Our products mainly include:

paper roll Slitting rewinding Machine

Paper Tube Machine

Paper Core Cutting Machine

Paper Corner Machine

11kw Jumbo Paper Slitting And Rewinding Machine

Product Tags:

paper slitter rewinder

jumbo roll slitter rewinder

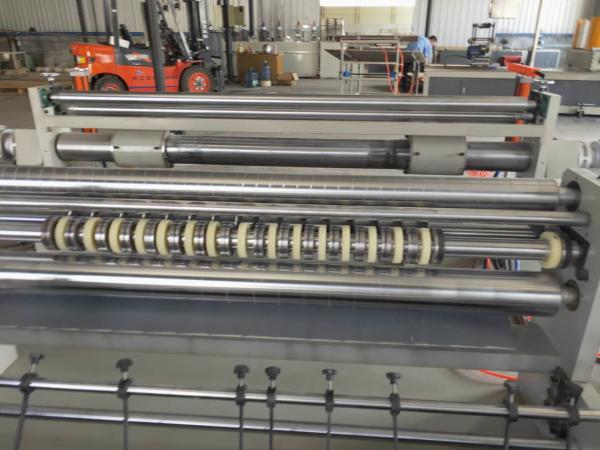

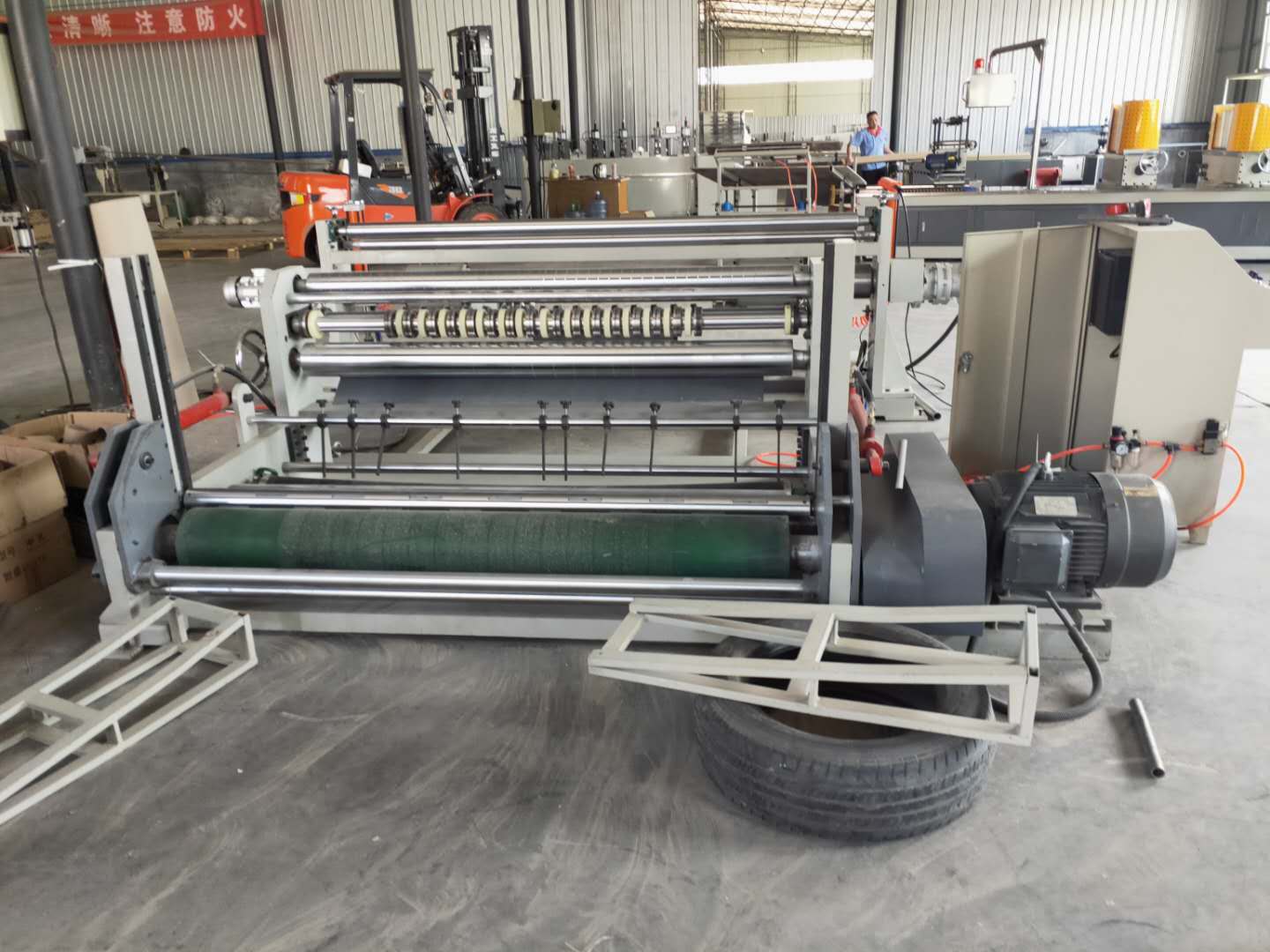

11kw Jumbo Paper Slitting And Rewinding Machine Images
