Fast Speed Kraft Paper Slitting And Rewinding Machine 11kw

Name: Fast Speed Kraft Paper Slitting And Rewinding Machine 11kw
Brand: Tiansheng
Price: 1 USD

Brand Name : Tiansheng

Model Number : 1600B

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Price negotiation

Payment Terms : T/T

Supply Ability : 10+SET/SETS+per month

Delivery Time : 40-45

Packaging Details : All with stretch film machine, into the container.

Name : automatic high-speed slitting machine

Type : Slitting rewinder

Weight : 3900KG

Voltage : 380V/50HZ

Power(w) : 11kw

Tension adjustment : Automatic magnetic particle brake

Winding method : Gas up outside the closed

Paper loading method : Hydraulic Shaftless support

Contact Now

Fast Speed Slitter Rewinder Machine Roll Paper Slitting Machine / Kraft Paper Roll Machine

1. Adopts PLC control system and modular electrical layout design system
2. Equipped with automatic variable speed cutting machine and automatic tracking cutting, which make the paper roll more flatten ans smooth
3. The machine has reasonable design , stable performance, easy operation, stable running

paper roll slitter rewinder machineTechnical Parameters

Base paper width	1600(mm)
Diameter of base paper	1200(mm)
Rewinding diameter	1200(mm)
Slitting width	>35(mm)
Base paper weight	80-600g
Number of cutters	18pcs
Slitting speed	1-300(m/min)
Speed control	Frequency control
Main power	11kw
total weight	3900kg
Control System
Main motor	11kw
Electrical components	Chint/Omron
Button/emergency stop	Siemens
Cylinder components	Airtac/Tianao/chengdi/detai
Hydraulic system	Robicon
Configuration device
Tension adjustment	Pneumatic brake
Paper loading method	Hydraulic Shaftless support
Unloading method	Hydraulic blanking
Winding method	Gas up outside the closed
application tools	1set

Fast Speed Kraft Paper Slitting And Rewinding Machine 11kw

Product Tags:

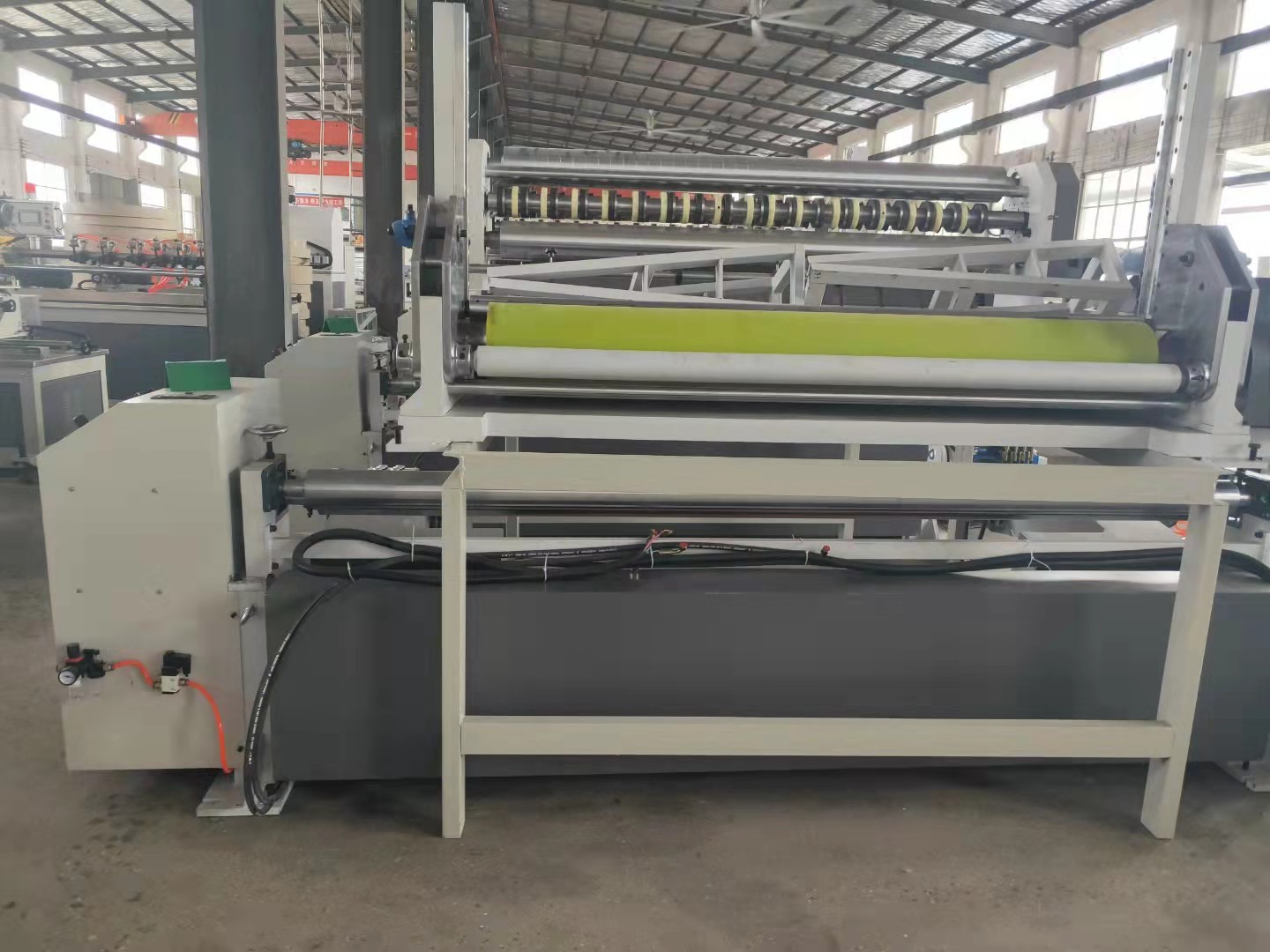

Fast Speed Kraft Paper Slitting And Rewinding Machine 11kw Images
