Servo Controlled high speed two head paper tube making machine
Machine introduction
1.CNC tracking cutting, manually adjust the size according to the order. This structure can make the cutting size more accurate, without the second precision cutting, which can improve work efficiency.
2.The main motor for the two Shanghai Simik (2.2kw) This product is a gear motor, replacing the traditional cycloid motor, with low noise; strong power, low failure rate and so on.
3.Cutting table synchronization chase cutting function to avoid the conventional cutting paper tube paper gap changes and host instability, to maximize the quality of the paper tube.
4.PLC control system for the special products, the system response fast, accurate data processing, good stability, anti-interference ability, together with the professional shearing servo constitute a perfect combination.
Product Description
Technical parameter |
paper layer |
2-7 plies |
Inner diameter of tube | 15-60(mm) |
Thickness of tube | 1-5(mm) |
Speed | 0-25(m/min) |
Fixed length mode |
Numerical control |
Winding head |
Double head single belt |
Cutting type |
CNC Automatic Tracking for Cutting |
Fixing Method of Core winding mould |
Bolt tightening |
Gluing way |
Double sides glue |
control mode |
Frequency control |
Input voltage | 380V/220V |
Number of operators | 1-3人 |
| 尺寸(毫米) Size(mm) |
Main machine:L*W*H | 3100*1500mm*1800mm |
Coverage: L*W | 11000mm*5000mm |
Hub diameter | 200mm |
Hub height | 300mm |
Main machine weight | 900kg |
Total weight | 1450kg |
Drive system |
Main power | 2*3.7kw
SEIMEC from Shanghai |
Main engine speed | 1400r/min |
Max. speed of hub | 72r/min |
Hub Output Torque | 4000N.m |
Wheel hub drive |
2 wheel drive |
Cutting-blade motor | 0.2kw 1:15
OTG from shanghai |
Our honor
Corporate credit rating of "AAA", for manyyears by the Hebei Province PackagingFederation awarded; "Hebei excellentpackaging enterprise, was awarded:" onbehalf of the people of Hebei netinternational consumer rights day 3.15 good faith unit ", as many well-knowncolleges and universities" technologyresearch base "in 2016 by the HebeiScience and Technology Department" theidentification of SMEs in Hebei province".

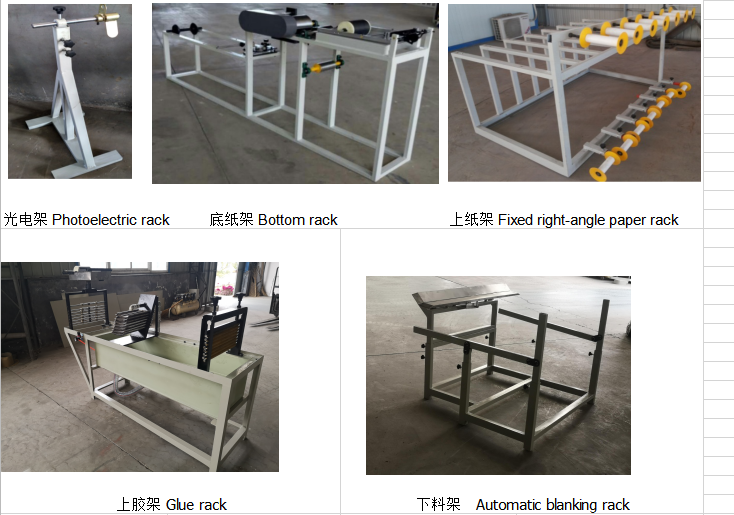

Machine composition
