Two Head 2-7 Layers Automatic CNC Paper Tube Making Machine
Machine introduction
1. For paper tube diameter Ø15-60mm; paper tube thickness 1-5mm paper tube production.
2. According to different paper tube, tube speed between 0-40 (m / min).
3.CNC tracking cutting, manually adjust the size according to the order. This structure can make the cutting size more accurate, without the second precision cutting, which can improve work efficiency.
4.PLC control system for the special products, the system response fast, accurate data processing, good stability, anti-interference ability, together with the professional shearing servo constitute a perfect combination.
paper tube making Machine parameters
Control system |
PLC controller |
Special products |
Interface |
Special products |
Program version | CX-P9.04 |
Invertor |
ENERGY |
Main execution device |
CHINT |
| Button |
Siemens |
| Stop |
Siemens |
| Knob |
Siemens |
Signal elements |
HUGONG |
Pneumatic components |
Suopai/Tianao/Chengdi |
Cylinder | AirTAC |
Solenoid valve | AirTAC |
Synchronized tracking tube cutting system |
EURA servo motor |
Configuration device |
Cutting table surface |
Stainless steel table-board |
Paper holder type |
Fixed right-angle paper rack |
Glue supply |
Automatic circulation heating glue tank |
Lubricating oil supply |
Automatic lubrication stainless steel basin |
Bottom paper breaking |
Automatic alarm |
Tension regulation |
Mechanical adjustment |
Device of bottom and surface paper |
Stainless steel bottom paper holder,
face paper basin |
Guide wheel |
Stainless steel pipe |
Coil mandrel | 1 pcs |
Coil belt | 1 pcs |
Blanking rack |
Automatic blanking rack |
Application tools |
Inner hexagon 1 SET |
Our honor
Corporate credit rating of "AAA", for manyyears by the Hebei Province PackagingFederation awarded; "Hebei excellentpackaging enterprise, was awarded:" onbehalf of the people of Hebei netinternational consumer rights day 3.15 good faith unit ", as many well-knowncolleges and universities" technologyresearch base "in 2016 by the HebeiScience and Technology Department" theidentification of SMEs in Hebei province".

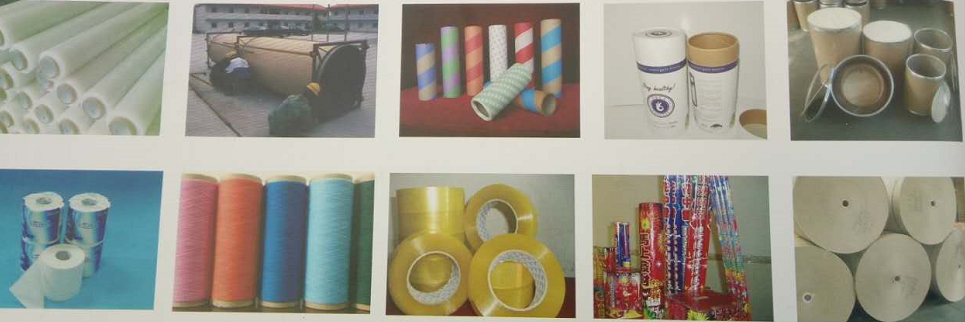

Paper tube use
The paper tube has the advantages of environmental protection and energy saving. The use of paper tube machinery has become more and more extensive, and more and more types of products are more diversified. The following are a few of them:
Chemical fiber industry tube
DTY tube, POY tube, FDY tube, nylon tube, spandex tube, spandex covered yarn tube
Film industry
BOPP, PET, PVC, BOPA, CPP, agricultural mulch film, cling film, stretch film, plastic bag tube (for supermarket), aluminized film, electrical capacitor film, acrylic film, cigarette film
Printing industry tube
Mainly used in roll printing, film printing, paper printing
Paper industry pipe
Newsprint, bobbin paper, white board paper, fax paper, receipt paper, tipping paper, aluminum foil paper, writing paper, colored parchment paper, cup paper, Tetra Pak paper, etc.
Leather industry
PU leather, real leather, carpet leather
Food packaging tube
