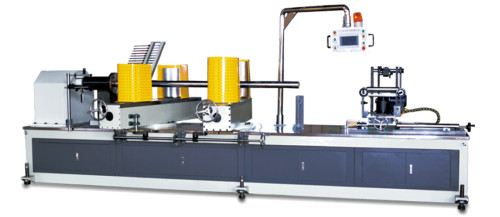

Automatic 2mm 27m/Min Spiral Paper Tube Making Machine

Name: Automatic 2mm 27mMin Spiral Paper Tube Making Machine
Brand: tiansheng
Price: 1 USD

Brand Name : tiansheng

Model Number : 350type

Certification : iso9001 ce

Place of Origin : china

MOQ : 1

Price : Price negotiation

Payment Terms : T/T

Supply Ability : 5set per month

Delivery Time : 45days

Packaging Details : Stretch film

paper layer : 3-25layer

diameter : 50-350（mm）

Thickness : 2-15（mm）

Speed : 0-27（m/min）

Main machine:L*W*H : 5200mm*1900mm*2100mm

Winding head : No resistance four nose

Synchronized tracking tube cutting syste : EURA Servo Motor

Host angle : Electric adjustment

Contact Now

Automatic Spiral Cardboard Paper Tube Core Machine For Making Paper Spiral Tubes

Equipment advantage:

1.CNC fixed length, high accuracy, and easy and fast operation;

2.Electrically adjust the angle of the main engine to save labor and effort.

3.Gear drive, more stable operation.

Technical parameters

paper layer	3-25layers
inner diameter	50-350(mm)
thickness	2-15(mm)
speed	0-27(m/min)
Fixed length mode	Numerical control (light control)
Winding head	Four head
Cutting method	Circular knife CNC automatic
Gluing method	Double-sided glue
way to control	Frequency
Input voltage	380V/220V
Number of operators	1-3
total weight	5649kg
Control System
Main engine power	30kw
PLC controller	Special products
HMI	Special products
Frequency converter	ENERGY
Electrical components	Omron/Chint
Signal element	Omron/Pefun
Button/emergency stop	Siemens
Pneumatic Components	Airtac/Tianao

our client

Companies rely on scientific andtechnological progress, the introduction ofhigh technology, is committed to newproduct development and technologyimprovement, and is equipped with perfectsales network and service system, theproducts have been sold all over thecountry, but also with domestic and foreigntrade import and export companycooperation, products have been exportedto South Asia, West Asia, Middle East, Africa, North and South America, Russia, Ukraine and other countries. At present, thecompany has set up its own foreign tradesales department, will further developforeign trade
